15 Inch Capacitive Touch Screen with USB G+G 10 Points Pcap
WTY150C73A03
15 Inch Capacitive Touch Screen with USB G+G 10 Points Pcap
Production State
In Production
Stock Quantity
10 Pieces
Product Details
15 Inch Capacitive Touch Screen with Usb G+G 10 Points Pcap USB ILI2511 Glass+Glass 10 Touch Capacitive Touch Panel PCAP Touchscreen
Technical Datasheet Download: WTY150C73A03 Mechanical Drawing
15 Inch Capacitive Touch Screen with USB G+G 10 Points Pcap Feature:

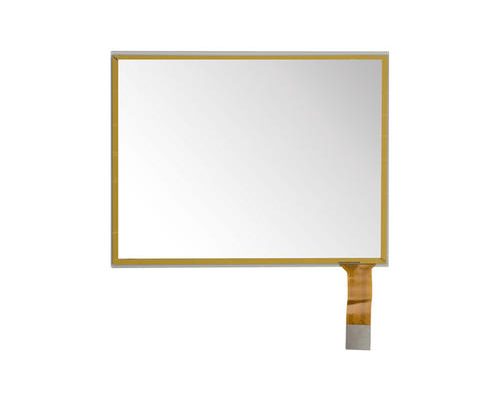

The WTY150C73A03 is genuinely a G+G structure capacitive touch panel that comprises cover glass, sensor glass, driver IC, and FPC. This is operated by an ILITEK IC Chip ILI2511 that adopts the USB interface with a touch sensitivity of 10 points.
Benefits of 15-inch capacitive touchscreen:
Highly Responsive:
A low operating force is expected to produce a fast response, which is recommended for smooth operation.
Easy Setup and Maintenance:
Often does not need much or any post-production calibration, which is good in terms of time and money.
Multi-Touch Capable:
Compliant with 10 touch points at once for such interactions as pinch-in/pinch-out and multi-touch scrolling to improve the user experience.
Durable and Cost-Effective:
Superior G+G glass keeps the structure scratch-proof and has a considerably long durability which in turn, reduces the costs of maintenance in the long run.
Large Display Size:
The 15-inch size is sufficient to have a large enough screen to provide both high picture quality and convenient manipulations of the displayed objects.
USB Interface:
Through the USB interface, easy compatibility with several devices is made possible and thus is ideal for diverse uses.
Applications:
Industrial control panels:
Control industrial processes and manage them through a touch interface even if it has a low picture quality.
Why consider us?
Wanty can inquire from the customers about their particular requirements as to the extent of the adjustments that are best for the product. These are the customization solutions that can meet diverse customer requirements and uses, thus increasing the variety and uses of their 15-inch LCD Display is a more flexible and useful product than that of the competitor by earning more points in this criterion. Why not go to our website today? Visit the website right now!
Technical Parameters
|
Model
|
WTY150C73A03
|
|
Size
|
15 inches
|
|
Interface
|
USB
|
|
Structure
|
G+G
|
|
Resolution
|
1024×768
|
|
Hardness
|
6H
|
|
Transparency
|
≥82%
|
|
Aspect Ratio
|
4:3
|
|
Working Voltage
|
5V
|
|
Touch Points
|
10 points
|
|
Viewing Area (mm)
|
304.22×228.20
|
|
Outline Dimension (mm)
|
325.90×252.90
|
|
Operating Temperature
|
-20ºC~+70ºC
|
|
Storage Temperature
|
-30ºC~+80ºC
|
|
Support System
|
Windows, Android, Linux etc
|
|
Application Fields
|
Industrial Control, Home Automation, Medical Device, Self-service Terminal etc
|
15 Inch Capacitive Touch Screen Customization Solution
Multi-Touch Optimization
Touch Sensitivity Adjustment
Custom Touch Driver Development
Display Customization
