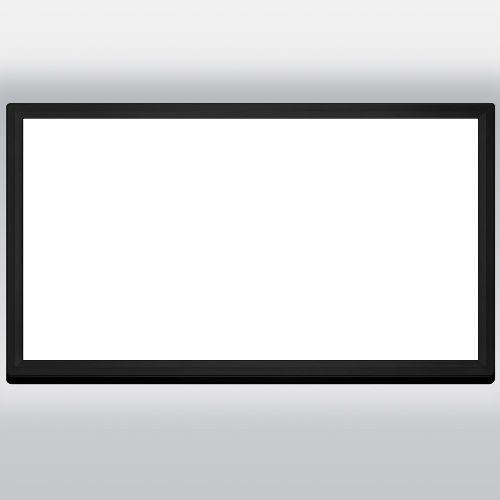

10.4 TFT LCD Module
TYI104SGMI300
10.4 TFT LCD Module
Production State
In Production
Stock Quantity
10 Pieces
Size
10.1 inch
Display Type:
lPS
Resolution:
1200x1920
Brightness:
300 nits
Touch Structure:
lncell
Touch Type:
Capacitive
Feature:
High Resolution, High Definition， Light Weight
Product Details
The 10.4 TFT LCD Module is unique from other modules in the market because it delivers clear, detailed visuals for a variety of devices. Whether you’re designing for industrial tools or consumer gadgets, its high resolution and easy-to-use touchscreen make it perfect for bringing your ideas to life. Let’s have a look at its features that will amaze you.
Key Features:
- Display Size: 10.4 inches, offering a compact yet spacious display area for detailed visuals.
- Resolution: It provides extremely sharp and vibrant images because it comes with SVGA (800×600) or XGA (1024×768) resolution.
- Interface: Equipped with standard interfaces like VGA, DVI, and LVDS. Because of this, this module can easily be integrated.
- Touch Panel: Choose resistive or capacitive touch screens, it’s up to you which one you choose.
- Brightness: Does not matter in which environment condition you are it Features high brightness levels.
- Viewing Angle: It offers wide viewing angles for consistent color and image quality from all angles.
- Color Depth: Capable of displaying a broad color range for more vibrant and sharp images that enhance user experience.
- Backlight: Say goodbye to higher power consumption. LED backlighting improves brightness and lower power consumption.
- Power Supply: Designed for low power consumption, it typically operates on 12V DC which make it suitable for a wide range of applications.
- Operating Temperature: Operates across a broad temperature range, ensuring reliability in diverse operational environments.
Applications of 10.4 TFT LCD Module :
- Industrial Applications: Ideal for use in manufacturing automation, process control, and machine interface panels.
- Medical Devices: Suitable for medical monitoring equipment, diagnostic devices, and portable health care products.
- Automotive and Marine: It has become the #1 SELLER because it can be integrated into vehicle dashboards, navigation systems, and onboard entertainment systems.
- Consumer Electronics: Are you fond of DIY projects? if YES then this module is for you. Also, perfect for home automation interfaces and custom entertainment systems.
- Educational Tools: Utilized interactive learning devices, laboratory equipment, and simulation tools.
Additional Information:
- Durability: Wanty doesn’t compromise on durability with a focus on reliability and performance in harsh conditions so you can enjoy long-term use.
- Support and Warranty: Comes with comprehensive technical support and a warranty, ensuring product reliability and customer satisfaction.
Technical Parameters:
|
Parameter
|
Specification
|
Unit
|
Remarks
|
|
Active Area
|
135.36(H) x 225.6(V)
|
mm
|
|
|
Number Of Pixels
|
1200(H)×2000(V)
|
pixels
|
|
|
Pixel Pitch
|
0.1128(H) × 0.1128(V)
|
mm
|
|
|
Pixel Arrangement
|
Pixels RGB stripe arrangement
|
||
|
Display Mode
|
Normally Black
|
||
|
Display Colors
|
16.7M(8bits)
|
colors
|
|
|
Display Mode
|
Normally Black
|
||
|
Surface Treatment
|
|||
|
Viewing Angle(CR>10)
|
80/80/80/80(typ.)u
|
deg.
|
|
|
Brightness
|
260(min.)/300(typ.)(TLCM)
|
cd/m2
|
|
|
Power Consumption
|
BLU: 2455.2mW Max.
|
watt
|
|
|
Outline Dimension
|
153.22(W)*243.46(H)*2.83(T)
|
mm
|
|
|
Weight
|
TBD
|
Gram
|
TFT LCD Custom Solutions:
LCD Cable Customization
Let us know the length, position, and pinout of your cables we will bring it to a life. Wanty will customize a cable solution to make your connections streamlined and secure.
1.8" Touchscreen Add-on
Make your user experience more valueable with capacitive or resistive touch screen technology. Wanty is here to adjust the glass thickness or shape of the touch panel. We assure you that Wanty touch screen custom solution will amaze you in all possible ways.
LCD Interface Customization
Wanty is offering you Custom LCD Interface Solutions for Streamlined Performance. Yes now you can also Maximize Your Design Potential by letting us incorporate HDMI, USB, SPI, VGA and more.
1.8" LCD Cover Glass
Wanty is here to custom cut the cover glass to perfectly match the dimensions of your given size” eliminating any gaps or odd edges.
You can also choose from a variety of cover glass materials to optimize for clarity, strength, or touch sensitivity. For more better performance Wanty also offer different cover glass thicknesses to provide the perfect balance between protection and touch functionality. Order us now, we will customize your Needs.
