10.1 TFT LCD Module
TYI101SGMI300

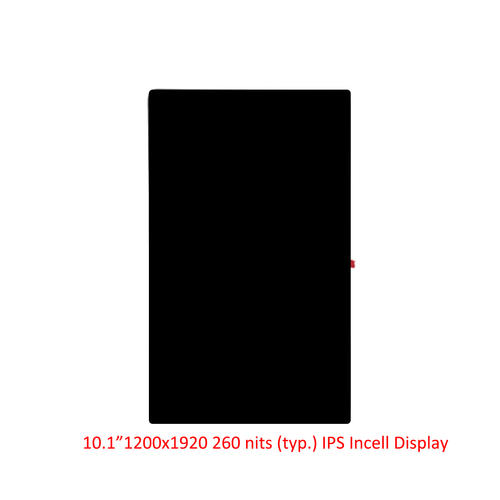

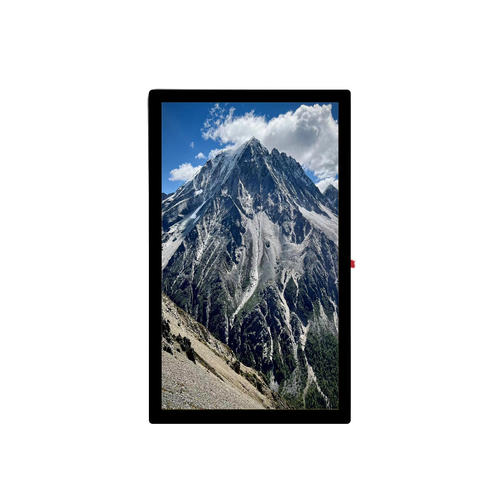

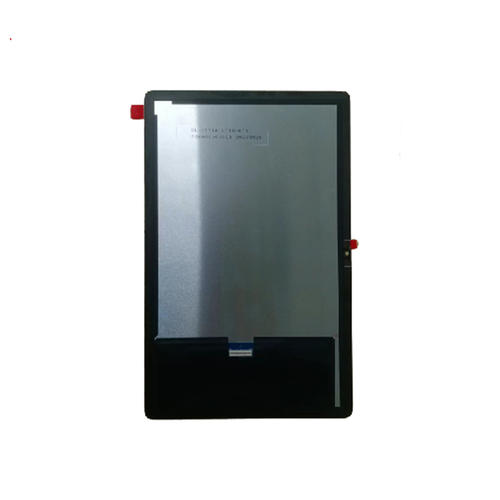

10.1 TFT LCD Module
Production State
In Production
Stock Quantity
10 Pieces

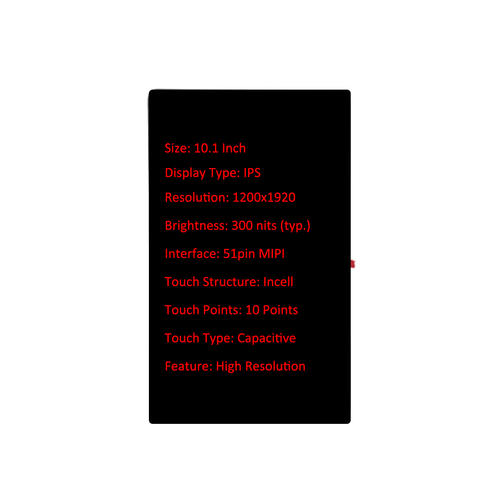

Size:
10.1 inch
Display Type:
lPS
Resolution:
1200x1920
Brightness:
300 nits
Touch Structure:
lncell
Touch Type:
Capacitive
Feature:
High Resolution, High Definition， Light Weight
Product Details
The 10.1″ TFT LCD Module Plays an important role in multiple electronic projects and applications requiring high-quality visual displays. Here are the detailed product specifications and features that will let you know how worthy this module is:
Features of 10.1 TFT LCD Module:
- Display Size: Its 10.1 inches display size can provide ample screen for detailed & vibrant visuals.
- 4 Lane MIPI Interface: FIC, Active Pen,8-bit color depth, display 16.7M colors. Its Thin, lightweight, High luminance and contrast ratio feature makes it unique from other modules. Not only that but it comes up with low reflection and wide viewing angle, RoHS compliant.
- Resolution: Its High resolution 1024×600 or 1280×800 pixels provides clear and crisp images that will amaze your experience.
- Interface: Supports multiple interfaces such as HDMI, VGA, and AV input for versatile connectivity options.
- Touch Panel: Optional capacitive or resistive touch screen, enabling interactive applications.
- Brightness: High brightness levels, make the display eligible to use in all lighting situations.
- Viewing Angle: Now say Goodbye to color distortion because its wide viewing angle lets you enjoy the screen from all angles.
- Color Depth: Yes it is designed in such a way that it shows millions of colors for realistic and vibrant image quality.
- Backlight: LED backlighting for enhanced display brightness and energy efficiency.
- Power Supply: Typically requires 5V DC, making it compatible with standard power sources and portable battery packs.
- Operating Temperature: Designed to operate within a wide range of temperatures, suitable for diverse environments.
Applications of 10.1 TFT LCD Module:
- Embedded Systems: Perfect for all embedded systems, including industrial control panels, automotive displays, and medical devices.
- Consumer Electronics: Perfect for DIY projects, gaming consoles, and portable media players.
- Information Kiosks: Suitable for public information kiosks, point of sale (POS) systems, and interactive signage.
- Education and Training: This module is perfect for educational tools, and e-learning devices.
Additional Information:
- Durability: Its top-notch durability makes it worthy to bear the toughest daily usage.
- Support and Warranty: Comes with technical support and a warranty period for peace of mind. So what else do you want more? Do these features still not make this module valuable? Place your order Now!
Technical Parameters
|
Parameter
|
Specification
|
Unit
|
Remarks
|
|
Active Area
|
135.36(H)×216.576(V)
|
mm
|
|
|
Number Of Pixels
|
1200(H)×1920(V)
|
pixels
|
|
|
Pixel Pitch
|
0.1128(H) × 0.1128(V)
|
mm
|
|
|
Pixel Arrangement
|
Pixels RGB stripe arrangement
|
||
|
Display Mode
|
Normally Black
|
||
|
Display Colors
|
16.7M(8bits)
|
colors
|
|
|
Display Mode
|
Normally Black
|
||
|
Surface Treatment
|
NC
|
||
|
Contrast Ratio
|
900:1(typ.), 700:1(min.)
|
||
|
Viewing Angle(CR>10)
|
80/80/80/80(typ.)u
|
deg.
|
|
|
Response Time
|
25(typ.), 30(max.)
|
ms
|
|
|
Color Gamut
|
70%(typ.) 65%(min.)
|
||
|
Brightness
|
260(min.)/300(typ.)(TLCM)
|
cd/m2
|
|
|
Brightness Uniformity
|
75%(min)@9P
|
||
|
Power Consumption
|
LCD:TBD(White Pattern) BLU:TBD
|
watt
|
|
|
Outline Dimension
|
141.76(H)*226.33(V)*1.95(typ.)(LCM) 154.36(H)*235.58(V)*2.85(typ.)(TLC M)
|
mm
|
|
|
Weight
|
TBD
|
Gram
|
TFT LCD Custom Solutions:

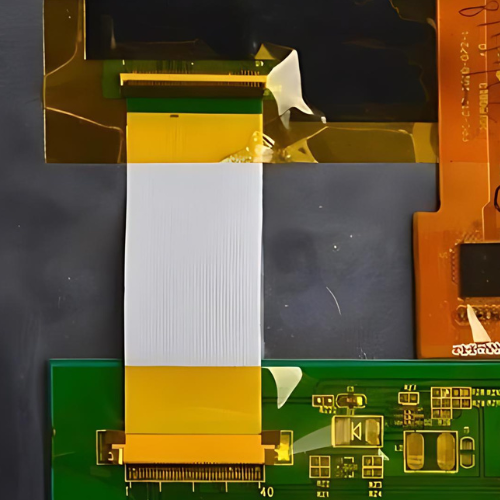

LCD Cable Customization
Here at Wanty, you can get the perfect length and fit for your needs. Whether you need to extend your cable reach, organize your cables, or ensure a secure connection, we have brought an amazing solution for you.
10.1" Touchscreen Add-on
Wanty is here to provide you two types of touchscreens, capacitive and resistive, to give you the best user experience. Now its up to you which you order us to cutomize. We are here to customzie the one that perfectly match with your project needs.
LCD Interface Customization
Wanty knows that every project has different connection needs. That’s why we offer a wide variety of interface options for your display. Here are few popular ones like HDMI, USB, and VGA. Choose and order us. We will bring your design to life.

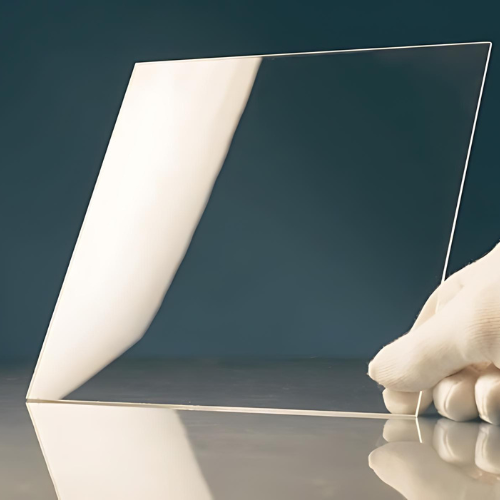

LCD Cover Glass
If you are one of those who is very concious about screen durability? then Wanty is here to add a custom-cut cover glass. Let us know the thickness that best suits your needs. We will bring your idea to a life.
